ggPack

Project Overview

Same reason as ggBleed: aircraft ECS design is the work I know best, and I wanted something I could actually show. Everything here comes from public data (published papers and government reports, every value cited), and the models run in OpenModelica, which is open source, so nothing here depends on a paid tool.

ggPack models an airliner air conditioning pack: the system that turns hot bleed air into cool, dry air for the cabin. The heart of it is a three-wheel bootstrap air cycle machine, with a compressor, turbine and ram fan on one shaft. Its inlet conditions come from ggBleed.

Roadmap & Development Phases

The model progresses through the following milestones:

What It Models

• Shaft dynamics: a single rotor inertia balancing turbine, compressor and fan torques. The inertia is fitted to a published start-up simulation,¹ and the shaft mechanical efficiency comes from a published component study.²
• High-pressure water separation: primary and secondary heat exchangers, reheater, condenser and water extractor, with psychrometrics and evaporative spray of the extracted water into the ram duct. Heat-exchanger conductances are derived from published effectiveness values.³
• Pack control: flow control valve holding the pack-flow setpoint,⁴ temperature control valve bypass, and ram air doors. Ground ambient inputs follow a published fault-simulation study.⁵
• ggBleed coupling: runs directly on transient bleed outputs from ggBleed, with the same published regulation setpoint and precooler band.⁶

Technical Approach

As with ggBleed, the pack is built twice: a causal Python model and an acausal OpenModelica model. The OpenModelica cruise experiment runs at a published cruise case.⁷ It has no controller and models dry air, so it is a structural check, not a validation.

Validation

A built-in validate command compares the model with three published cases: a ground reference case,¹ a second ground point,⁴ and two cruise cases.⁷ Tolerances are the published mean deviations of an independent model of the same system.⁸

Current state, stated plainly: the pack is not yet calibrated. Of 19 accuracy checks, 4 are within tolerance (including shaft speed in both ground cases), the cruise controller reaches both published targets, and no physically impossible state occurs. Known gaps, such as the condenser’s missing wet heat-exchanger model and a water-mass leak, are pinned as expected-failure tests so they stay visible.

Results

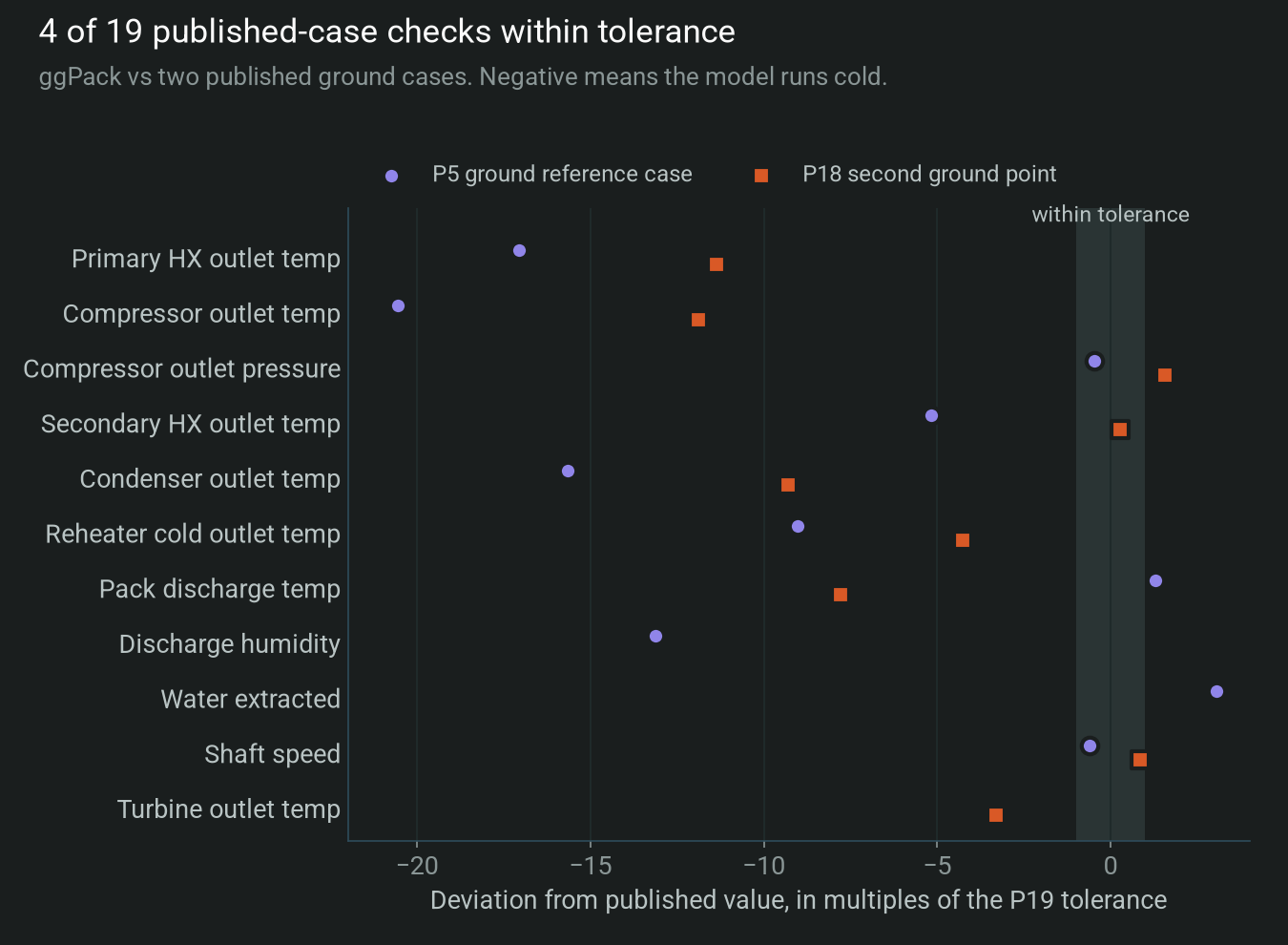

Each point is one published measurement, plotted as the model’s deviation in multiples of the published tolerance.⁸ Most stations run cold, some by more than ten tolerances, which is the calibration work ahead.

Research

The parameters and validation cases come from a curated library of 28 public papers, reports and theses on aircraft bleed and air conditioning systems, each read and filed with a short summary and notes on where its data sits. Progress notes and research findings are posted below as the work goes on.

Sources & Disclaimer

This is an independent educational project. It is a 737-800-class reference architecture built only from public sources: peer-reviewed journal papers and a government incident report. No manufacturer, maintenance, training or other proprietary documents were used, and it is not a replica of any manufacturer’s hardware. It is not affiliated with or endorsed by Boeing, Airbus, or any equipment supplier.

Every model value in the code is tagged to one of the references below, to a derivation written out from them, to textbook physics, or to a labelled generic modelling assumption. A provenance checker runs with the test suite and fails the build on any untagged value.
